Low-Distortion M12 Action Camera Lens
Product Images
9 images
Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens Low-Distortion M12 Action Camera Lens
Reliable Order Delivery
Follow your order delivery process with available shipment information. Delivery time depends on destination and selected delivery method.
Clear Return Process
Review the return conditions and available options for eligible products through our return policy.
Secure Payment
Payment details are handled through secure payment methods provided for safe online purchasing.
SKU: CJXFLPSM00170 Out of Stock

Low-Distortion M12 Action Camera Lens

Available Options
Browse available product options and select the suitable specification.
2 options
Action camera lens Black
Action camera lens Black
SKU: CJXFLPSM00170-Black
Weight: 50
Dimensions: 180 × 160 × 150
$219.42
Action camera lens 4K HD
Action camera lens 4K HD
SKU: CJXFLPSM00170-4K HD
Weight: 50
Dimensions: 180 × 160 × 150
$53.32
Availability Out of Stock
Amount available 0
Selected variant price
No in-stock CJ variant is currently available for this product.

Product Details

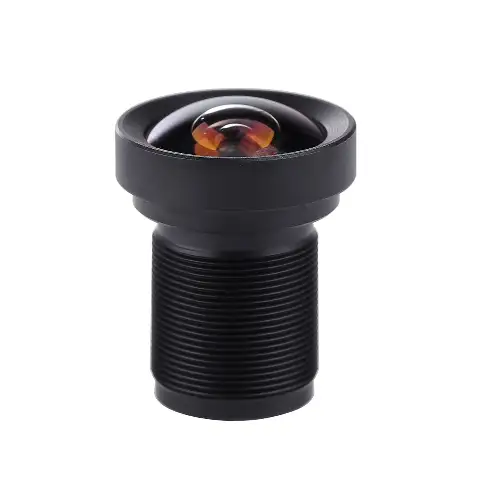

Low-Distortion M12 Lens for Action Camera Systems

This fixed-focus lens is designed for camera systems requiring a compact wide-angle optical component. It features an all-metal and all-glass lens structure, an F2.8 maximum aperture, and an M12 interface specification. Two variants are available: Black and 4K HD.

Optical Design

The lens uses a low-distortion design approach based on all-glass, glass-plastic mixing, glass aspherical, and related optical construction methods. The source specifications identify this design as supporting the optical requirements of low distortion, large depth of field, and high resolution.

Black Variant

Focal length: 3.97 mm
Aperture: F2.8
Interface: M12 * P0.5
Filter caliber: 17 mm
Minimum focusing distance: 0.1 mm
Wide angle: 92°
Shooting angle: 82° * 65° * 92°
Lens volume: ф17.4 * L21.77
Color: Black

4K HD Variant

Focal length: 4.35 mm
Aperture: F2.8
Interface: M12 * P0.5
Filter diameter: 14 mm
Nearest focus distance: 10 mm
Wide angle: 86°
Shooting angle: 73° * 56° * 86°
Lens volume: ф14 * L19.32
Target size: 1/2.3 inch

Application Fields

The source describes low-distortion lenses in this range as being used in scanning recognition, industrial recognition, face recognition, unmanned aerial vehicle systems, motion DV, biometric lenses, video conference lenses, and hunting camera lenses. These applications describe the listed fields and should be matched with the requirements of the intended camera system.

Recommended Chip Solutions

The listed recommended chip solutions include IMX337, IMX274, OV4689, OV2710, OV2718, AR0330, AR0140, IMX291, IMX290, IMX335, and OV9282.
